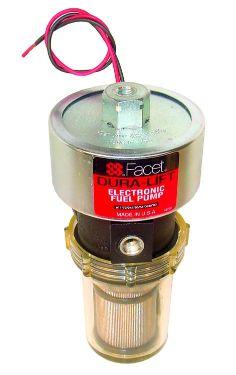

Facet 40223 Dura-Lift Fuel Pump (Thermo King 41-7059) (40223)

Facet 40223 Fuel Pump Dura-Lift (Thermo King 41-7059)

Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.

Solid State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.

Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming. Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for visual capability to monitor the cleanliness of the stainless steel filter.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Voltage:- 12v

Earth:-Neg

Pressure (Psi):- 11.5-9

Flow (US Gallons):- 33

Dry Prime Height In Mtrs:- 3

Thread Size:- 1/8th nptf

Fuel:- Diesel

Filter Micron:- 80

Loom Connector Block:- Packard

Check Valve:- Yes

Height (mm):- 180

Width (mm):- 82

Weight (kg) 1.1

Operating Temprature:- -40 to 180 deg F

Average Run Time (MTBF):- 10000 hrs

Please Note:- The product in not suitable for use in the aircraft industry

Application:- Refrigeration, Generators, Industrial Plant

Cross Reference:-

30-01108-00SV

30-01080-02

30-00364-00

40269

40291

41-2638

41-7059

070214

23084

20225026

Fuel Petrol up to E10, Petrol + E85, Diesel

Voltage 12v DC

Manufacturer Facet
