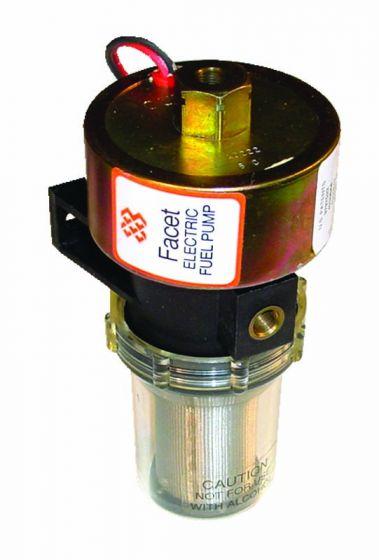

Facet 40237 Dura-Lift Fuel Pump (24v) (40237)
Facet 40237 Dura-Lift Fuel Pump (24v) (40237)
Facet 40237 Fuel Pump 24 Volt Dura-Lift (Diesel)
Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.
Solid State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.
Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming. Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for visual capability to monitor the cleanliness of the stainless steel filter.
Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.
Voltage- 24v
Earth:-Neg
Pressure (Psi):- 11.5-9
Flow (US Gallons):- 33
Dry Prime Height In Mtrs:- 3
Thread Size:- 1/8th nptf
Filter Micron:- 80
Loom Connector Block:- No
Check Valve:- Yes
Corrosion Resistance:-:- Over 100 hours of salt spray
Average Run Time or MTBF:- 10000 hrs
Height (mm):- 180
Width (mm):- 82
Weight (kg) 1.1
Operating Temprature:- -40 to 180 deg F
Please Note:- The product in not suitable for use in the aircraft industry
Fuel Petrol up to E10, Petrol + E85, Diesel
Voltage 24v DC
Manufacturer Facet
