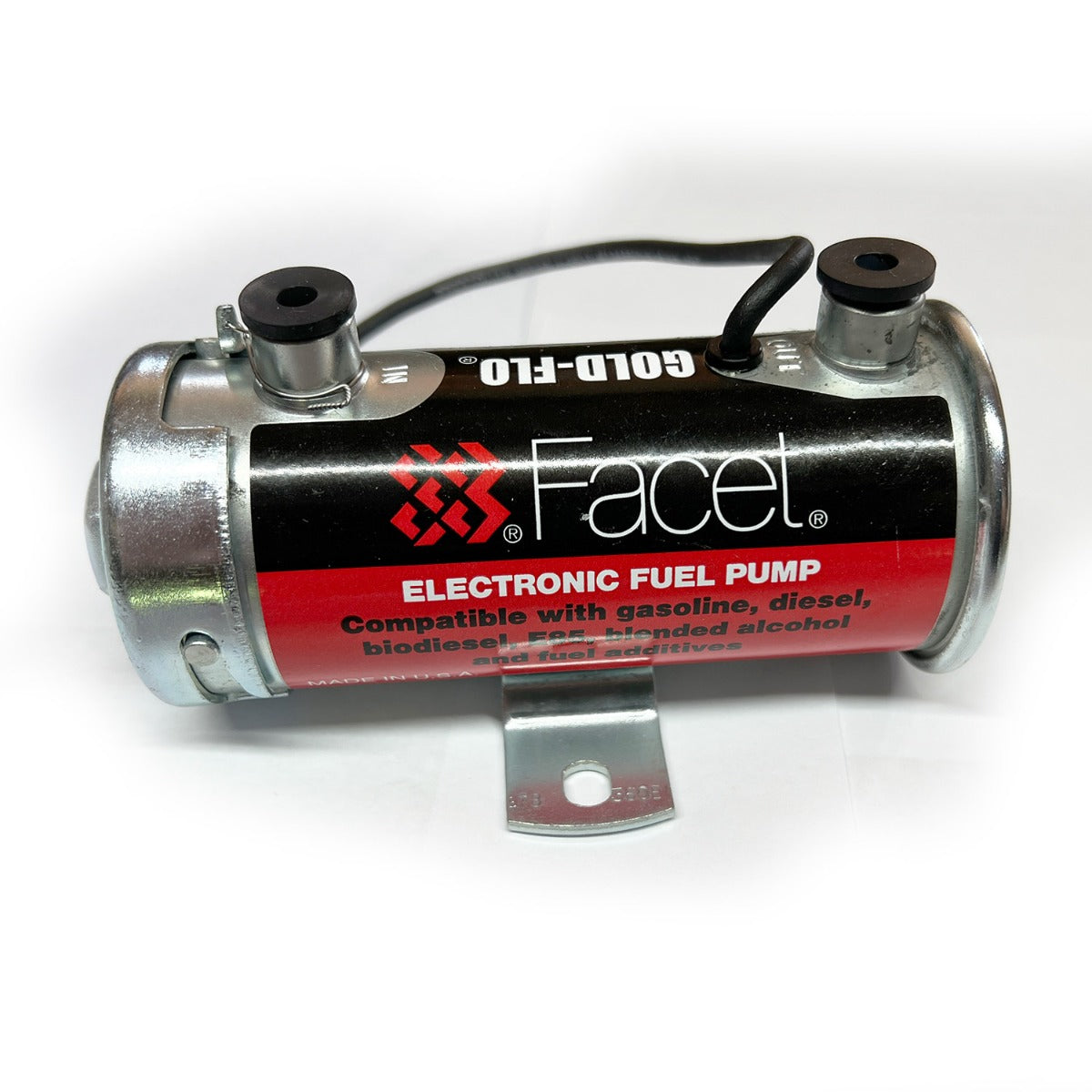

Facet 478360 Cylindrical Fuel Pump (IP360)

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.

Specification:- Industrial

Pump:- 478360

Voltage:- 12v

Earth:- Neg

Pressure (Psi):- 4.0-5.5

Flow:- US Gallons/Hr36

Dry Prime Height in Mtrs:- 0.6

Thread :- 1/8th NPTF

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Operating Temperature:- -40º to +180° F (all Models)

Average Run Time or MTBF:- 6000 hrs

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:-140mm

Diameter:- 54mm

Weight:-0.7kg

Please Note:- The product in not suitable for use in the aircraft industry

Fuel Petrol up to E10, Petrol + E85

Voltage 12v DC

Manufacturer Facet
