FORD ESCORT Mk1 (1968-74) RELAY 20 AMP 5 PIN -GENUINE LUCAS
FORD ESCORT Mk1 (1968-74) RELAY 20 AMP 5 PIN -GENUINE LUCAS

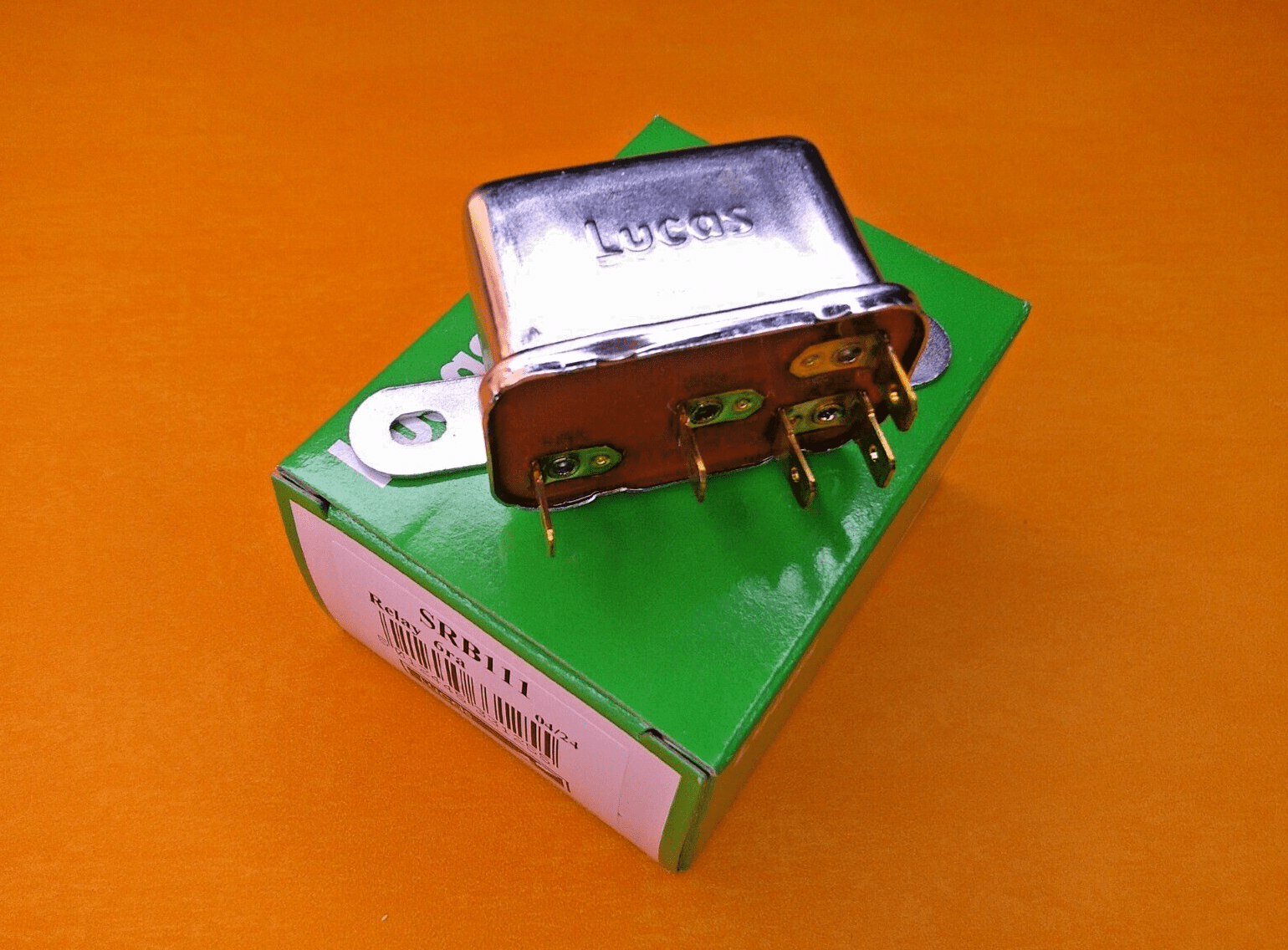

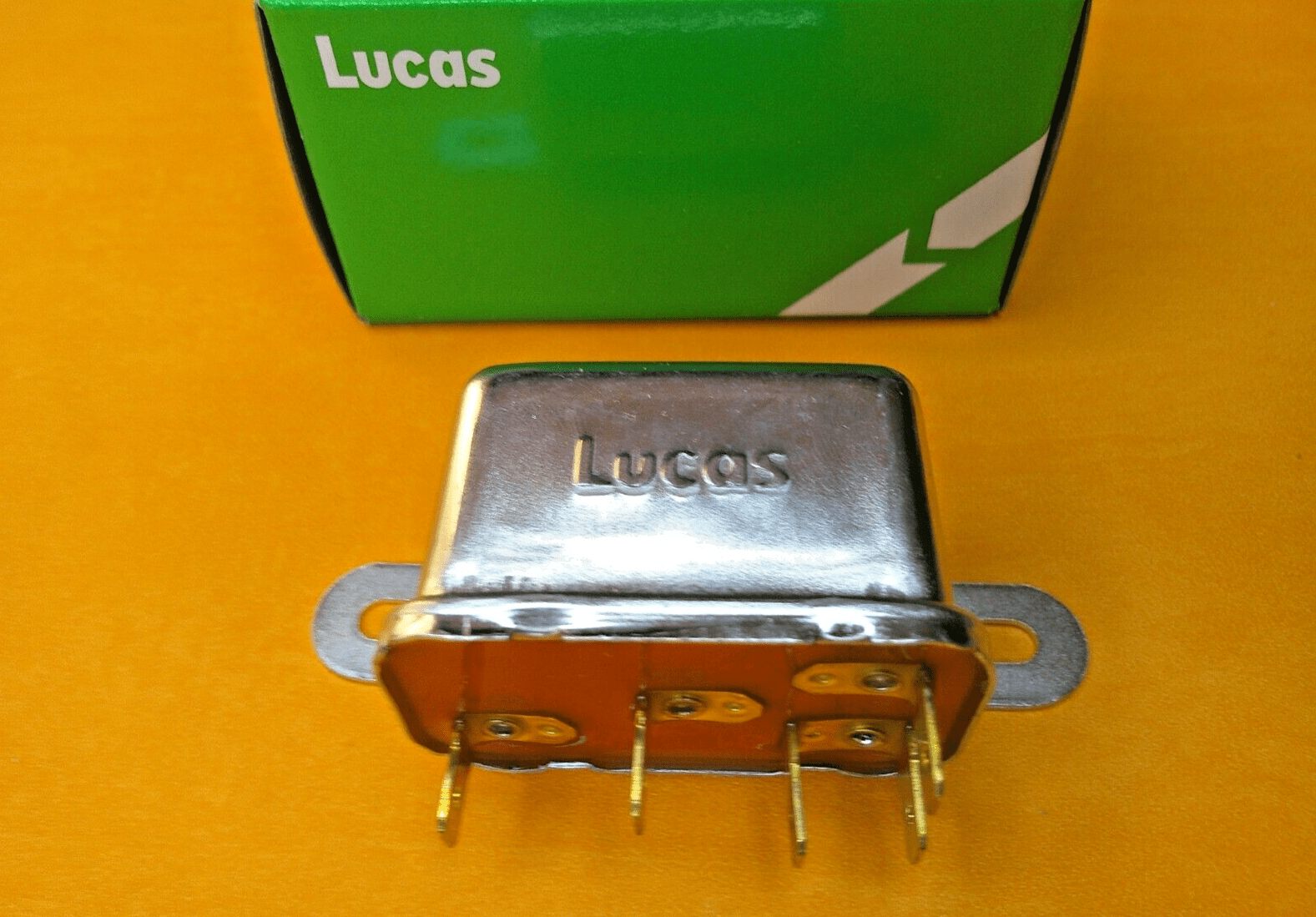

Lucas 12V 20 Amp 5 Pin 6RA Relay Complete With Box
to fit
FORD ESCORT Mk1 (1968-74)
(check yours before you buy)
Specifications:
· Rated at 20A Normally Open

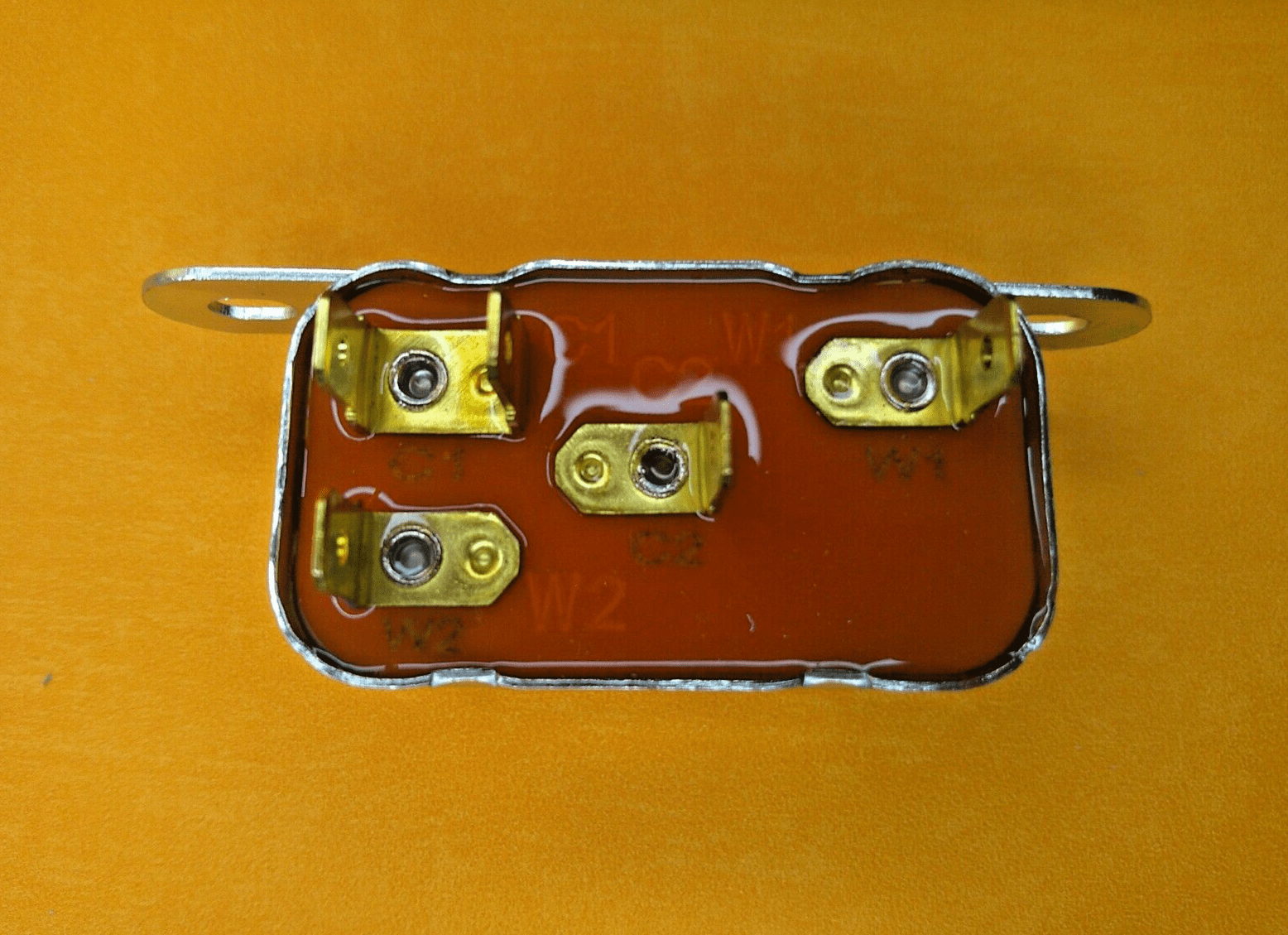

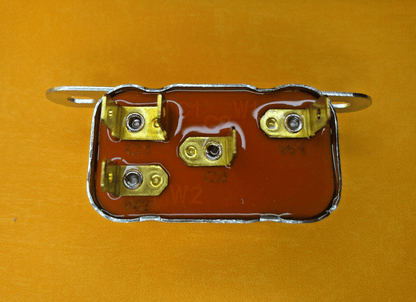

· 5 x Terminals – 2 x C1, 1 x C2, 1 x W1, 1 x W2
This is the Lucas improved version of this relay / solenoid having hermetically epoxy sealed base plate preventing the ingress of moisture which was often the reason for the non-sealed version of this relay to fail in use.
Terminals W1 & W2; Relay coil winding 75 ohms.
Terminals C1 & C2; double and single Lucar terminals with normally open contacts (contacts close when relay coil energized).
This is also a good general purpose relay for headlights, Spot Lights, Horns etc, also very useful for trike's, specials and the kit car enthusiasts / builder.
