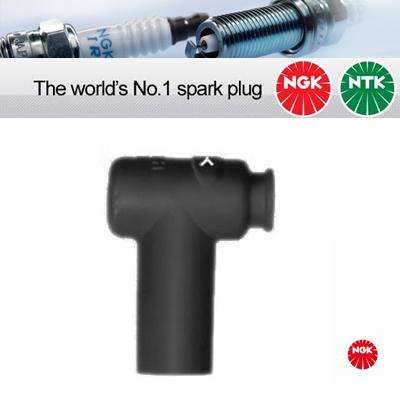

    NGK LB05EMH Resistor Spark Plug Cap black 8338

    NGK LB05EMH Resistor Spark Plug Cap black 8338

    £6.20
    £6.20 £6.20
    Sale Sold out
    Taxes included.
    New
    LB05EMH-B NGK Spark Plug Caps

    The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever. Some caps are none resistor such as the LZFH & LBER. Ideal for magnetos ignition etc. Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistance. Special rubber liners on both ends prevent moisture from causing electrical leakage. All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK products there is no loss of performance or shortening of service life. LB05EMH and SD05FM being of tough EDPM rubber construction are intended for competition/trial applications

    • Authenticity Guaranteed
    • Satisfaction Guarantee
    • Secure Payments

    Model Compatibility

    List of British and European cars compatible with NGK LB05EMH Resistor Spark Plug Cap black 8338 and LB05EMH-B:

    - Austin-Healey 100/6 1956-59
    - Austin-Healey 3000 1959-67
    - Austin-Healey Sprite 1958-71
    - Bentley S1, S2, S3 1955-66
    - Daimler V8 1959-66
    - Jaguar E-Type 1961-71
    - Jaguar Mark II 1959-67
    - Jaguar S-Type 1963-68
    - Jaguar XJ6 1968-73
    - Jaguar XK120, XK140, XK150 1952-61
    - Lotus Elite 1957-63
    - Lotus Elan 1962-74
    - MG MGA 1955-62
    - MG MGB 1962-80
    - MG Midget 1961-79
    - Morgan 4/4 1955-63
    - Morgan Plus 4 1955-63
    - Morris Minor 1000 1956-71
    - Sunbeam Alpine 1959-68
    - Triumph Herald 1959-71
    - Triumph Spitfire 1962-80
    - Triumph TR3, TR4, TR4A 1955-67
    - Triumph TR5, TR6 1967-76
    - TVR Griffith 1963-67
    - TVR Vixen 1967-73
    - Volkswagen Beetle 1965-73

    Part Number

    - Part Name: NGK LB05EMH Resistor Spark Plug Cap black 8338
    - Part Number: LB05EMH-B
    - Product Type: NGK Spark Plug Caps
    - Noise Suppression: Yes
    - Resistor Element: Yes
    - None Resistor Caps: LZFH, LBER
    - Ideal for: Magnetos ignition
    - Resistance Element Material: Ceramic
    - Resistance Variation: Small
    - Connector Material: Phenolic resin
    - Heat and Tension Resistance: Yes
    - Rubber Material: Rugged
    - Heat Press Insertion: Yes
    - Vibration Resistance: Yes
    - Moisture Protection: Yes
    - Motorcycle Manufacturer Compliance: Yes
    - Standard of Noise Suppression: Yes
    - NGK Resistor Covers: Yes
    - NGK Resistor Spark Plugs: R type
    - Ministry Tests: Satisfied
    - Performance Loss: No
    - Service Life: Not shortened
    - LB05EMH and SD05FM: Tough EDPM rubber construction
    - Intended Use: Competition/trial applications
