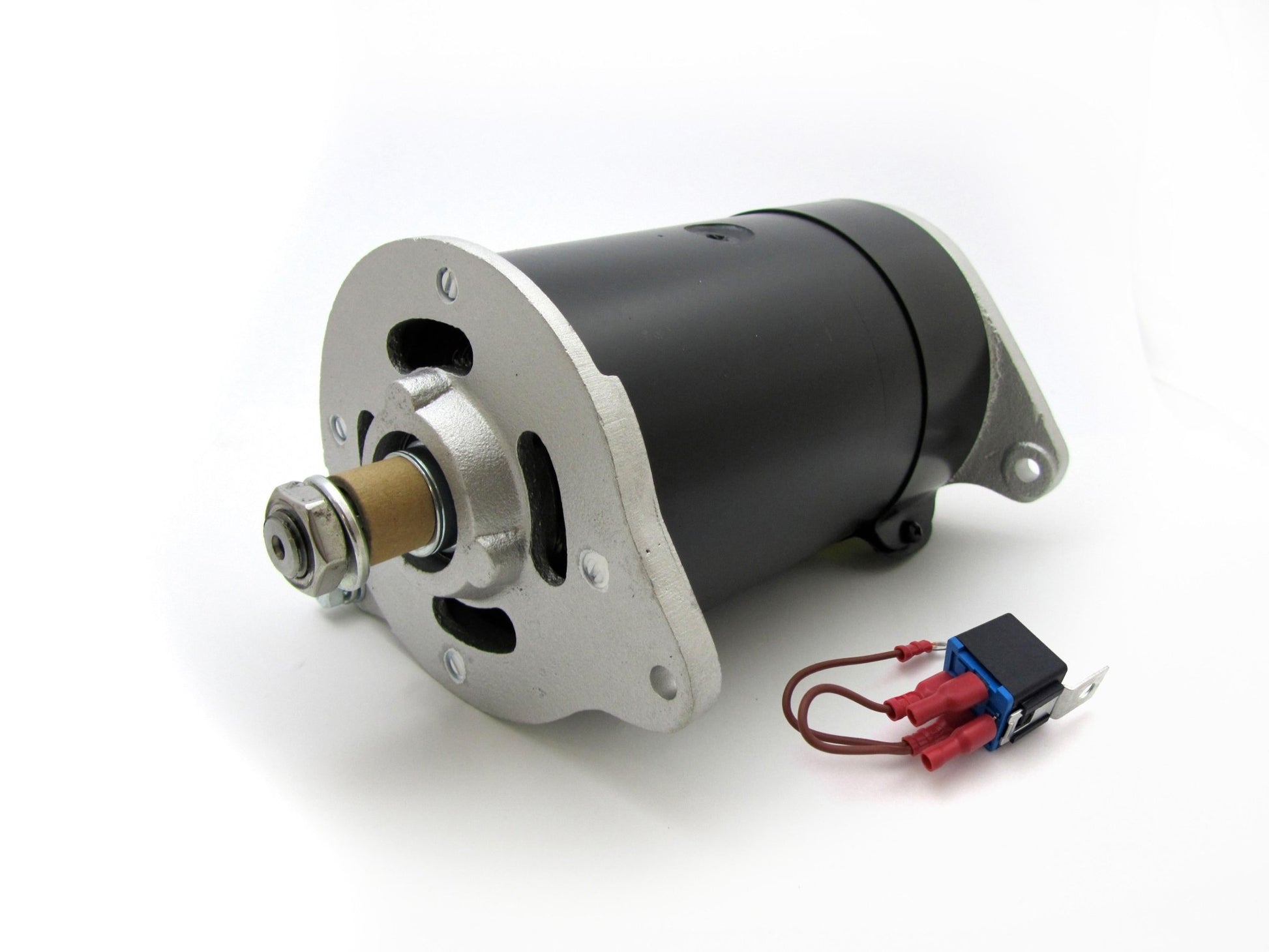

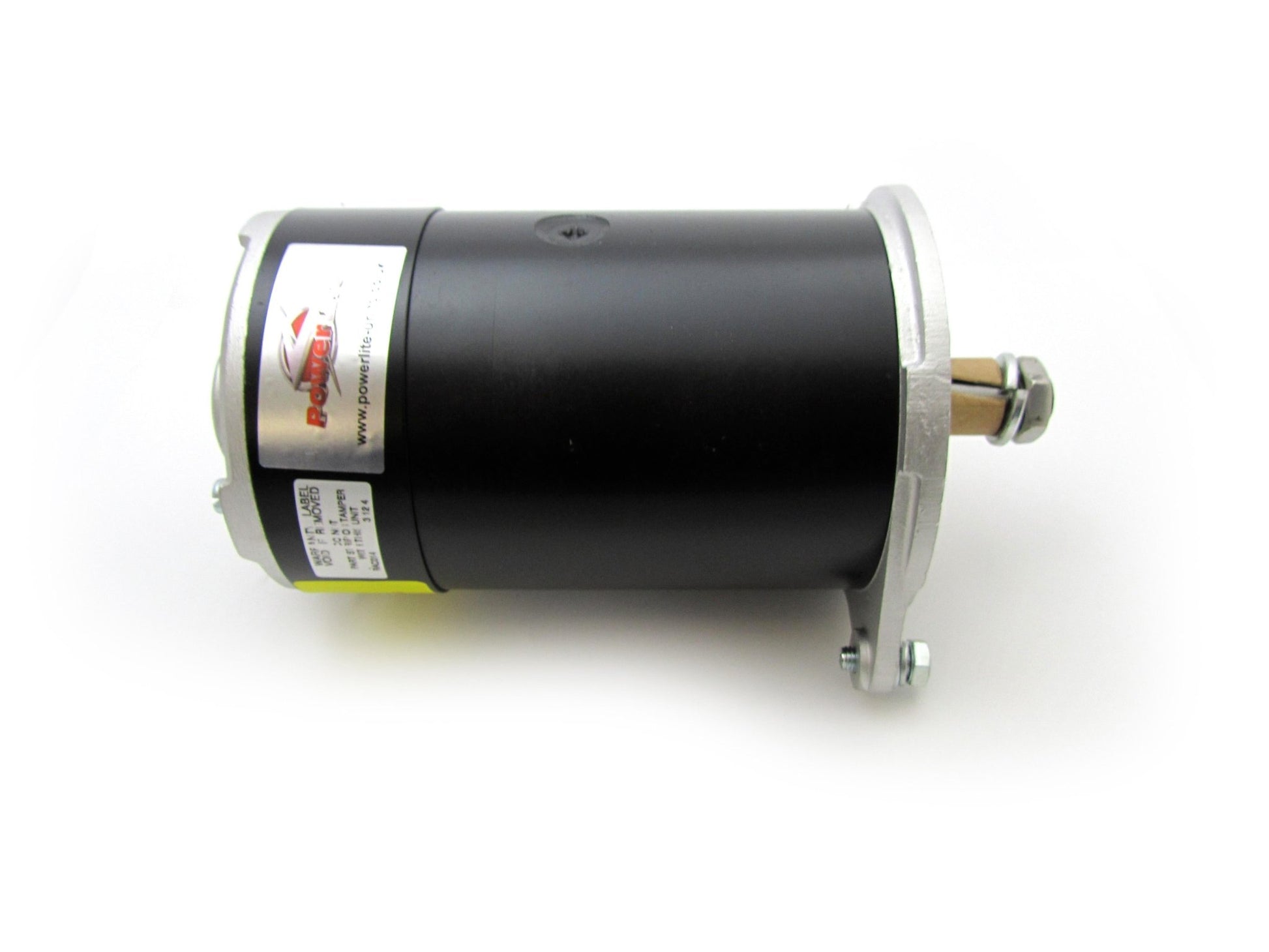

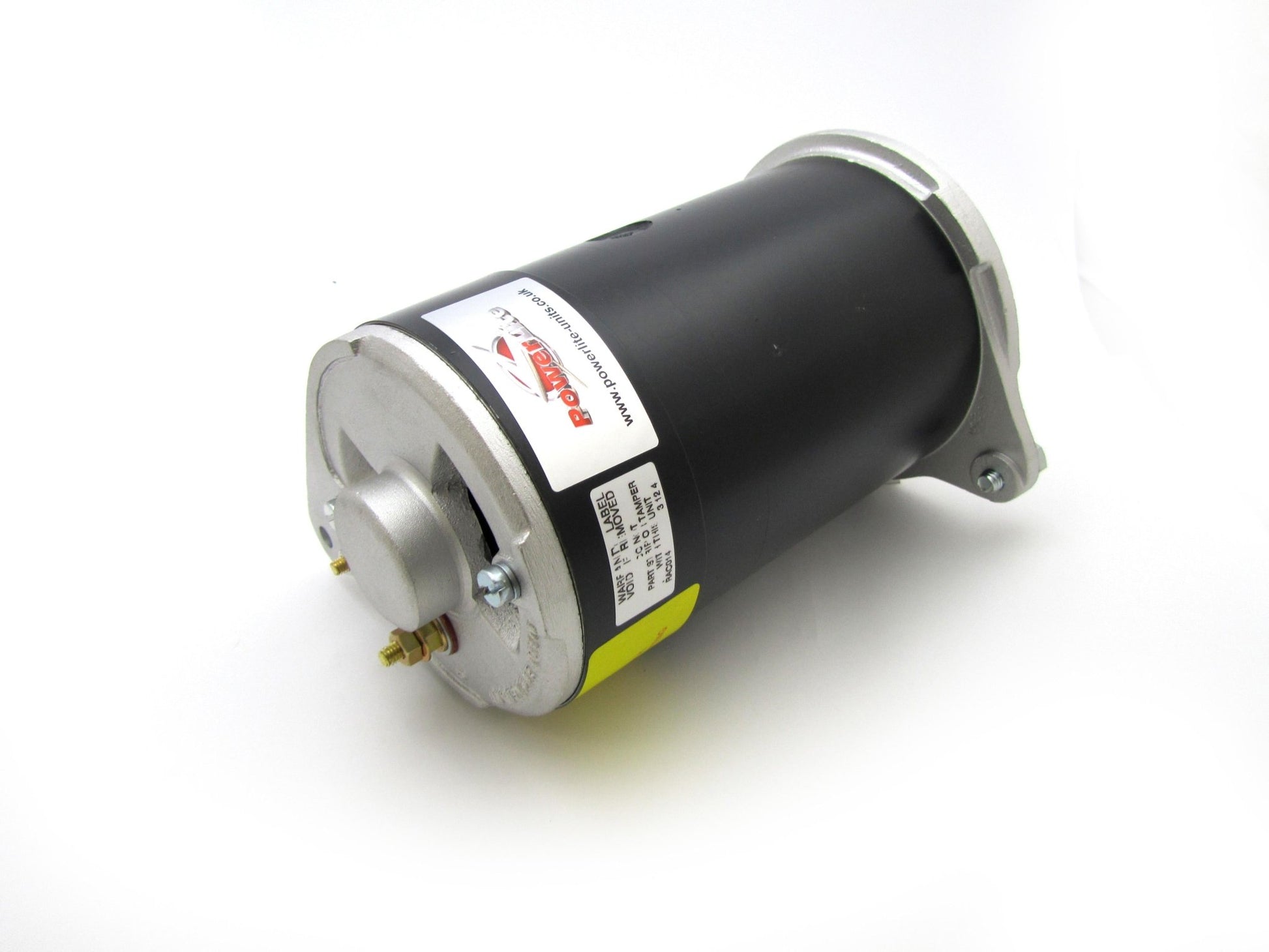

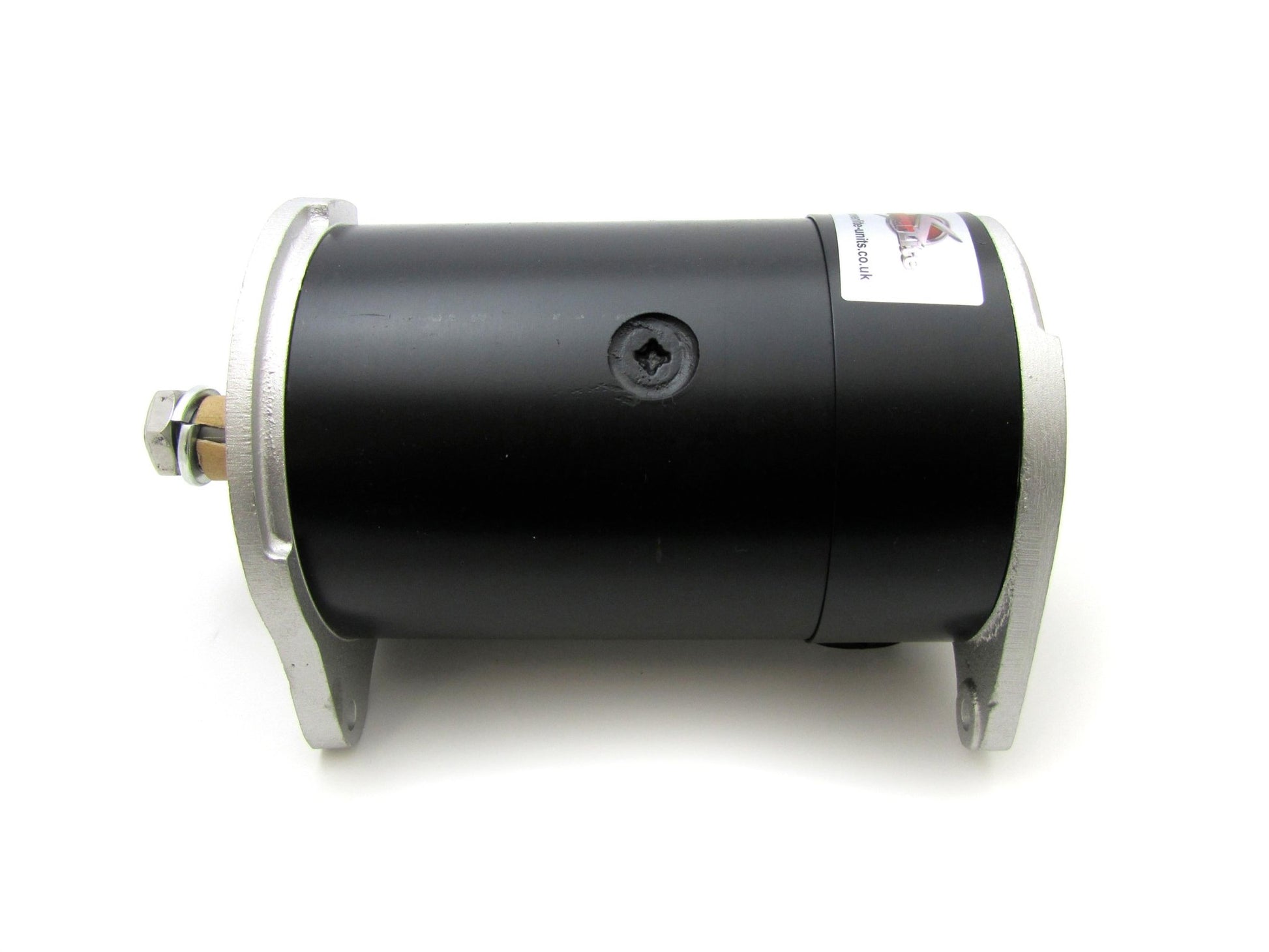

RAC014 Powerlite Dynalite Lucas C45 Type Dynamo Alternator Conversion Positive Earth

RAC014 Powerlite Dynalite Lucas C45 Type Dynamo Alternator Conversion Positive Earth

£522.50
£522.50 £522.50
Sale Sold out
Taxes included.
New

RAC014 Powerlite Dynalite

Designed and manufactured by highly experienced auto electricians in West Midlands, UK. The Dynalite aims to bring together modern alternator technology with the classic looks and appearance of a Dynamo.

Ideal for both road and competition use the Dynalite provides up to 80% more power and weigh up to 40% less than original dynamo units. The Dynalite units are produced in a wide range of different models replicating original dynamo units, thus allowing the Dynalite to directly replace dynamo units with no modifications to the vehicle. In many cases the original dynamo pulleys can also be used on the new units, creating a simple and reversible alternator conversion.

The self regulating Dynalite units offer increased reliability and performance charging efficiently across the full rev range. The wiring changes required for the units are very simple and reversible.

All Dynalite units are supplied with comprehensive fitting instructions.

Powerlite also offer a wide range of fitting accessories including pulleys and dummy control boxes.

What changes need to be made to the wiring?

The Dynalite unlike a dynamo is self regulating, therefore the control box is redundant. There are two ways to rewire the control box for the Dynalite unit. The first is to simply bypass or use the control box as a junction point with two small wiring changes. The second and preferred option is to fit a Powerlite dummy control box.

Dummy Control Boxes:

Identical in fitment and appearance to the original, the dummy unit is pre-wired to aid the necessary changes. Dummy boxes are fitted with an 40A fuse, protecting your electrical system. We recommend the use of dummy control boxes where applicable.

NOW 60AMP!!

LUCAS C45 TYPE

(POSITIVE EARTH)

SEE RAC008 FOR NEGATIVE EARTH.

The RAC014 (C45 Dynamo replacement) now has a 60 Amp output as opposed to the original 40amp. This now means that it offers more than three times the power of the original dynamo together with increased reliability and full power available at engine tick-over speed.

  • Amps - 60 A
  • Bracket Distance - 165 mm
  • OEM - Lucas
  • Polarity - Positive Earth
  • Shaft Diameter - 17 mm
  • Authenticity Guaranteed
  • Satisfaction Guarantee
  • Secure Payments

Model Compatibility

Jaguar E-Type 1961-1974
Jaguar MKII 1959-1967
Jaguar XK150 1957-1961
Jaguar XK120 1948-1954
Jaguar MKVII 1951-1956
Jaguar MKVIII 1956-1959
Jaguar MKIX 1959-1961
Jaguar MKX 1961-1970
Jaguar MKXI 1961-1969
Jaguar MKXII 1961-1970
MG MGA 1955-1962
MG MGB 1962-1980
MG MGC 1967-1969
MG Midget 1961-1979
Triumph TR2 1953-1955
Triumph TR3 1955-1962
Triumph TR4 1961-1965
Triumph TR5 1967-1968
Triumph TR6 1969-1976
Triumph Spitfire IV 1962-1970
Triumph Spitfire 1500 1974-1980
Triumph GT6 1966-1973
Austin-Healey 100 1953-1956
Austin-Healey 3000 1959-1967
Austin-Healey Sprite 1958-1971
Austin-Healey 100-Six 1956-1959
Austin-Healey 3000 BJ8 1964-1967
Austin-Healey 100-6 BN4-BN6 1956-1959
Austin-Healey 100-6 BN7 1959-1961
Austin-Healey 100-6 BT7 1959-1961
Austin-Healey 3000 BJ7 1962-1964
Austin-Healey 3000 MKIII 1964-1967
Morris Minor 1956-1971
Morris Oxford 1954-1960
Morris Cowley 1954-1956
Morris Oxford 1954-1960
Morris Cowley 1954-1956
Morris Six 1959-1961
Morris Minor 1000 1956-1971
Morris Oxford Series V 1960-1966
Morris Mini 1959-1967
Morris Minor 1000 1956-1971
Morris Oxford Series V 1960-1966
Morris Mini 1959-1967
Austin A30 1951-1956
Austin A35 1956-1962
Austin A40 1958-1967
Austin A50 1955-1959
Austin A55 1959-1967
Austin Westminster A95 1956-1959
Austin Westminster A105 1956-1959
Austin Cambridge A60 1959-1969
Austin Mini 1959-1967
Austin 1800 1964-1975
Austin Princess 1960-1969
Austin A99 1959-1961
Austin A110 1961-1968
Austin-Healey Sprite MKII 1961-1964
Austin-Healey Sprite MKIII 1964-1971
Austin-Healey 3000 MKII 1961-1964
Austin-Healey 3000 MKIIA 1964-1967
Wolseley 4/44 1952-1956
Wolseley 15/50 1956-1958
Wolseley 1500 1957-1965
Wolseley 6/90 1954-1959
Wolseley 6/99 1959-1961
Wolseley 6/110 1961-1968
Wolseley 16/60 1961-1971
Wolseley 1100 1965-1969
Wolseley 1300 1967-1973
Wolseley Hornet 1961-1969
Riley One-Point-Five 1957-1965
Riley 4/68 1959-1961
Riley 4/72 1959-1961
Riley Elf 1961-1969
Riley Kestrel 1965-1969
Riley 1100 1965-1969
Riley 1300 1967-1973
Riley One-Point-Five 1957-1965
Riley 4/68 1959-1961
Riley 4/

Part Number

1. RAC014
2. C45
3. RAC008
4. 60 Amp
5. Lucas
6. Positive Earth
7. 17 mm
8. Dynalite
9. 80% more power
10. 40% less weight
11. Original dynamo units
12. Simple and reversible alternator conversion
13. Increased reliability and performance
14. Full rev range
15. Comprehensive fitting instructions
16. Powerlite dummy control box
17. 40A fuse
18. 60 Amp output
19. OEM - Lucas
20. Bracket Distance - 165 mm
21. Polarity - Positive Earth
22. Shaft Diameter - 17 mm.
