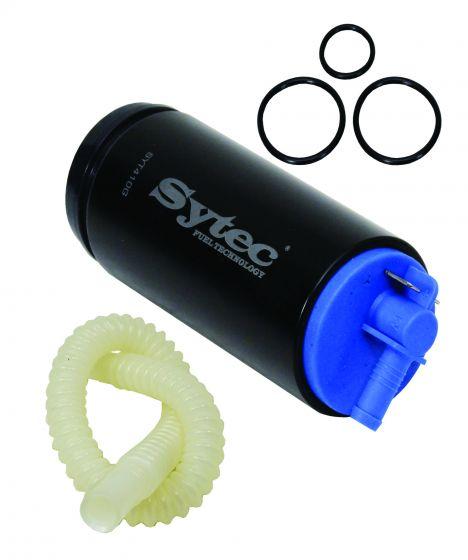

Sytec Motorsport Fuel Pump Kit ( Golf Mk IV (1J1) & Polo (6N1-2)

Please Note:- The carrier shown in the picture is for indentification purposes only and is not part of the kit.

The new Sytec range of 300 & 340 Ltr/Hr High Performance fuel pumps have been designed and tested with performance & reliability as a priority. Pumps with a part numbers ending in G are for vehicles using standard forecourt petrol with up to 15% ethanol content. Part numbers ending with EM are compatible with all petrol types up to and including E85 (85% Ethanol)

We have a wide range of kits to suit most modern tuned vehicles and motorsport fuel cells, details of which can be supplied on request.

Fittings In (mm):- 44.8

Fittings Out (mm):- 8

Pump:- Sytec SYT410G

Voltage DC:- 12

Flow Ltr/Hr (Max):- 378

Flow Ltr/Hr @ 3 Bar (44psi):- 282

Flow Ltr/Hr @ 5 Bar (73psi):- 225

Max Pressure:- 10.5 Bar

Length (mm):- 136

Diameter (mm):- 50

Weight (Kg):- 0.276

Flow Chart

Applications:-

Description Model Year

VW BORA (1J2) 1.4 16V 03.00 - 05.05

VW BORA (1J2) 1.6 10.98 - 05.05

VW BORA (1J2) 1.6

Engine Code: AVU, Engine Code: BFQ, Engine Code: BJH 08.00 - 05.05

VW BORA (1J2) 1.6 16V

Engine Code: ATN, Engine Code: AUS, Engine Code: AZD,

Engine Code: BCB 05.00 - 05.05

VW BORA (1J2) 1.6 FSI

Engine Code: BAD 01.02 - 05.05

VW BORA (1J2) 1.8 10.98 - 05.05

VW BORA (1J2) 1.8 4motion 02.99 - 05.05

VW BORA (1J2) 1.8 T

Engine Code: AGU, Engine Code: ARX, Engine Code: AUM,

Engine Code: BAE 05.00 - 05.05

VW BORA (1J2) 1.8 T

Engine Code: AUQ 03.02 - 05.05

VW BORA (1J2) 2.0 10.98 - 12.13

VW BORA (1J2) 2.0 4motion

Engine Code: AZH, Engine Code: AZJ 04.00 - 05.05

VW BORA (1J2) 2.3 V5 10.98 - 10.00

VW BORA (1J2) 2.3 V5 4motion 12.98 - 10.00

VW BORA (1J2) 2.3 V5

Engine Code: AQN 10.00 - 05.05

VW BORA (1J2) 2.3 V5 4motion

Engine Code: AQN 10.00 - 05.05

VW BORA (1J2) 2.8 V6 4motion 03.99 - 05.05

VW BORA Estate (1J6) 1.4 16V

Engine Code: AHW, Engine Code: AXP, Engine Code: BCA 09.01 - 05.05

VW BORA Estate (1J6) 1.6 05.99 - 05.05

VW BORA Estate (1J6) 1.6

Engine Code: AVU, Engine Code: BFQ 08.00 - 05.05

VW BORA Estate (1J6) 1.6 16V

Engine Code: ATN, Engine Code: AUS, Engine Code: AZD,

Engine Code: BCB 02.00 - 05.05

VW BORA Estate (1J6) 1.6 FSI

Engine Code: BAD 01.02 - 05.05

VW BORA Estate (1J6) 1.8 4motion

Engine Code: AGN 05.99 - 05.05

VW BORA Estate (1J6) 1.8 T

Engine Code: AGU, Engine Code: ARX, Engine Code: AUM 05.00 - 05.05

VW BORA Estate (1J6) 1.8 T

Engine Code: AUQ 05.02 - 05.05

VW BORA Estate (1J6) 2.0 05.99 - 05.05

VW BORA Estate (1J6) 2.0 4motion

Engine Code: AZH, Engine Code: AZJ 04.00 - 05.05

VW BORA Estate (1J6) 2.0 4motion

Engine Code: ATF 12.99 - 05.03

VW BORA Estate (1J6) 2.3 V5 05.99 - 10.00

VW BORA Estate (1J6) 2.3 V5 4motion 05.99 - 10.00

VW BORA Estate (1J6) 2.3 V5

Engine Code: AQN 10.00 - 05.05

VW BORA Estate (1J6) 2.3 V5 4motion

Engine Code: AQN 10.00 - 05.05

VW BORA Estate (1J6) 2.8 VR6

Engine Code: AUE 03.00 - 05.00

VW BORA Estate (1J6) 2.8 V6 4motion

Engine Code: AQP, Engine Code: AUE, Engine Code: BDE 05.99 - 05.05

VW GOLF Mk IV (1J1) 1.4 16V

Model year from: 01.98, Chassis no. from: 1JW 000 001,

Chassis no. t o: 1J6 000 001 08.97 - 06.05

VW GOLF Mk IV (1J1) 1.6

Model year from: 01.98, Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001, Engine Code: AEH, Engine Code: AKL, Engine Code: APF 08.97 - 05.04

VW GOLF Mk IV (1J1) 1.6

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 08.00 - 06.05

VW GOLF Mk IV (1J1) 1.6

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: BAH 02.01 - 03.07

VW GOLF Mk IV (1J1) 1.6 16V

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 02.00 - 06.05

VW GOLF Mk IV (1J1) 1.6 FSI

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 01.02 - 06.05

VW GOLF Mk IV (1J1) 1.8

Model year from: 01.98, Chassis no. from: 1JW 000 001,

Chassis no. t o: 1J6 000 001 08.97 - 06.05

VW GOLF Mk IV (1J1) 1.8 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AGN 05.98 - 06.05

VW GOLF Mk IV (1J1) 1.8 T

Model year from: 01.98, Chassis no. from: 1JW 000 001,

Chassis no. t o: 1J6 000 001 08.97 - 06.05

VW GOLF Mk IV (1J1) 1.8 T GTI

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 08.01 - 06.05

VW GOLF Mk IV (1J1) 2.0

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 07.98 - 05.04

VW GOLF Mk IV (1J1) 2.0 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AZH, Engine Code: AZJ 10.00 - 06.05

VW GOLF Mk IV (1J1) 2.3 V5

Model year from: 01.98, Chassis no. from: 1JW 000 001,

Chassis no. t o: 1J6 000 001, Engine Code: AGZ 08.97 - 10.00

VW GOLF Mk IV (1J1) 2.3 V5 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AGZ 12.98 - 10.00

VW GOLF Mk IV (1J1) 2.3 V5

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 10.00 - 06.05

VW GOLF Mk IV (1J1) 2.3 V5 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AQN 10.00 - 06.05

VW GOLF Mk IV (1J1) 2.8 VR6 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AQP, Engine Code: AUE, Engine Code: BDE 03.99 - 06.05

VW GOLF Mk IV (1J1) 3.2 R32 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001 09.02 - 06.05

VW GOLF Mk IV Estate (1J5) 1.4 16V

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001, Engine Code: AHW, Engine Code: AKQ, Engine Code: APE, Engine Code: AXP, Engine Code: BCA 05.99 - 06.06

VW GOLF Mk IV Estate (1J5) 1.6

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AEH, Engine Code: AKL, Engine Code: APF 05.99 - 04.02

VW GOLF Mk IV Estate (1J5) 1.6

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AVU, Engine Code: BFQ 08.00 - 06.06

VW GOLF Mk IV Estate (1J5) 1.6 16V

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001, Engine Code: ATN, Engine Code: AUS, Engine Code: AZD, Engine Code: BCB 02.00 - 06.06

VW GOLF Mk IV Estate (1J5) 1.6 FSI

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: BAD 01.02 - 06.06

VW GOLF Mk IV Estate (1J5) 1.8 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AGN 05.99 - 06.06

VW GOLF Mk IV Estate (1J5) 1.8 T

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001, Engine Code: AGU, Engine Code: AQA, Engine Code: ARZ, Engine Code: AUM, Engine Code: AWD 05.00 - 06.06

VW GOLF Mk IV Estate (1J5) 2.0

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: APK, Engine Code: AQY, Engine Code: AZJ 05.99 - 06.06

VW GOLF Mk IV Estate (1J5) 2.0 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AZH, Engine Code: AZJ 10.00 - 06.06

VW GOLF Mk IV Estate (1J5) 2.0 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: ATF 12.99 - 06.06

VW GOLF Mk IV Estate (1J5) 2.0 Bi-Fuel

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: BEH 02.02 - 06.06

VW GOLF Mk IV Estate (1J5) 2.3 V5

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AGZ 05.99 - 06.06

VW GOLF Mk IV Estate (1J5) 2.3 V5 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AGZ 05.99 - 06.06

VW GOLF Mk IV Estate (1J5) 2.3 V5

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AQN 10.00 - 06.06

VW GOLF Mk IV Estate (1J5) 2.3 V5 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AQN 10.00 - 06.06

VW GOLF Mk IV Estate (1J5) 2.8 V6 4motion

Chassis no. from: 1JW 000 001, Chassis no. t o: 1J6 000 001,

Engine Code: AQP, Engine Code: AUE, Engine Code: BDE 05.99 - 06.06

VW LUPO (6X1, 6E1) 1.0 09.98 - 07.05

VW LUPO (6X1, 6E1) 1.4 16V 09.98 - 07.05

VW NEW BEETLE (9C1, 1C1) 1.4 11.01 - 09.10

VW NEW BEETLE (9C1, 1C1) 1.6

Engine Code: AWH 10.99 - 09.00

VW NEW BEETLE (9C1, 1C1) 1.6

Engine Code: AYD, Engine Code: BFS 06.00 - 09.10

VW NEW BEETLE (9C1, 1C1) 1.8 T 10.99 - 09.10

VW NEW BEETLE (9C1, 1C1) 1.8 T

Engine Code: AWP, Engine Code: BNU 11.01 - 06.05

VW NEW BEETLE (9C1, 1C1) 2.0 01.98 - 09.10

VW NEW BEETLE (9C1, 1C1) 2.3 V5

Engine Code: AQN 10.00 - 09.10

VW NEW BEETLE (9C1, 1C1) 2.5 07.05 - 09.10

VW NEW BEETLE (9C1, 1C1) RSI 3.2 4motion (1C9) 04.00 - 05.01

VW NEW BEETLE Convertible (1Y7) 1.4 01.03 - 09.10

VW NEW BEETLE Convertible (1Y7) 1.6 01.03 - 09.10

VW NEW BEETLE Convertible (1Y7) 1.8 T 01.03 - 09.10

VW NEW BEETLE Convertible (1Y7) 2.0 09.02 - 10.10

VW NEW BEETLE Convertible (1Y7) 2.5 07.05 - 09.10

VW SHARAN (7M8, 7M9, 7M6) 2.8 VR6 Syncro 11.96 - 04.00

OE Cross Reference

Manufacturer OE Number

AUDI 6X0919051G

AUDI 1J0919087H

AUDI 1J0919051E

AUDI 1J0919091C

AUDI 8X0919051C

AUDI 1J0919051J

AUDI 8C0919051H

AUDI 1J0919098H

AUDI 8L0919051

AUDI 8L0919051K

AUDI 8L0919051B

AUDI 8L0919051A

AUDI 1J0919087G

AUDI 8L0919051G

AUDI 8L0919051H

AUDI 8L0919051E

AUDI 1J0919051D

AUDI 8L0919051F

AUDI 8L0919051J

AUDI 1J0919051H

AUDI 1J0919087J

AUDI 1J0919087D

AUDI 1J0919087C

AUDI 1J0919051C

SEAT 8L0919051G

SEAT 8L0919051H

SEAT 1J0919051D

SEAT 6X0919051G

SEAT 1J0919087H

SEAT 8L0919051E

SEAT 8L0919051F

SEAT 8L0919051A

SEAT 8L0919051

SEAT 8C0919051H

SEAT 8L0919051K

SEAT 1J0919087D

SEAT 1J0919098H

SEAT 1J0919087J

SEAT 1J0919051H

SEAT 8L0919051B

SEAT 8X0919051C

SEAT 1J0919051J

SEAT 1J0919087G

SEAT 8L0919051J

SEAT 1J0919091C

SEAT 1J0919087C

SEAT 1J0919051E

SEAT 1J0919051C

SKODA 8X0919051C

SKODA 1J0919051H

SKODA 1J0919087J

SKODA 1J0919087H

SKODA 1J0919051J

SKODA 8L0919051B

SKODA 1J0919087G

SKODA 8L0919051J

SKODA 6X0919051G

SKODA 8C0919051H

SKODA 8L0919051

SKODA 8L0919051A

SKODA 8L0919051K

SKODA 8L0919051G

SKODA 8L0919051H

SKODA 8L0919051E

SKODA 8L0919051F

SKODA 1J0919098H

SKODA 1J0919051D

SKODA 1J0919087D

SKODA 1J0919051C

SKODA 1J0919051E

SKODA 1J0919087C

SKODA 1J0919091C

VAG 8L0919051E

VAG 8L0919051F

VAG 8L0919051H

VAG 8L0919051G

VAG 1J0919051D

VAG 6X0919051G

VAG 1J0919087H

VAG 8L0919051K

VAG 8L0919051A

VAG 8C0919051H

VAG 8L0919051

VAG 1J0919051C

VAG 1J0919051J

VAG 1J0919087G

VAG 1J0919051E

VAG 1J0919087C

VAG 1J0919091C

VAG 1J0919087D

VAG 1J0919098H

VAG 1J0919087J

VAG 1J0919051H

VAG 8L0919051B

VAG 8X0919051C

VAG 8L0919051J

VW 8L0919051G

VW 8L0919051H

VW 8L0919051E

VW 8L0919051F

VW 8L0919051K

VW 8L0919051A

VW 8C0919051H

VW 8L0919051

VW 8X0919051C

VW 1J0919087H

VW 1J0919051J

VW 1J0919087G

VW 1J0919098H

VW 1J0919091C

VW 6X0919051G

VW 1J0919051D

VW 8L0919051B

VW 8L0919051J

VW 1J0919051C

VW 1J0919051E

VW 1J0919087C

VW 1J0919087D

VW 1J0919087J

VW 1J0919051H

Fuel Petrol up to E10

Manufacturer Audi, Seat, Skoda, Volkswagen

Voltage 12v DC

Manufacturer Sytec
