TRIUMPH GT6 VITESSE OVERDRIVE & HORN RELAY 20 AMP 5 PIN - GENUINE LUCAS

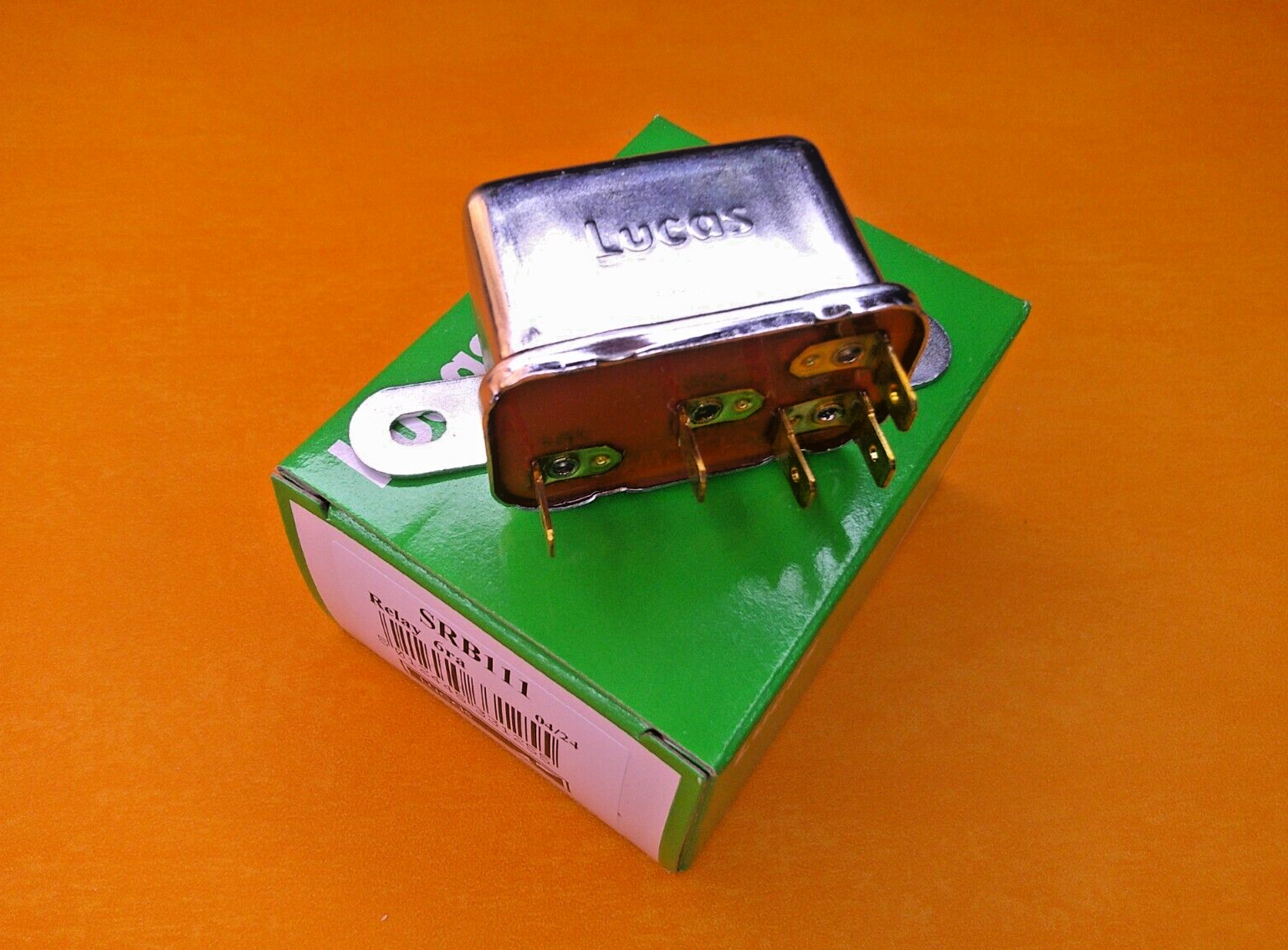

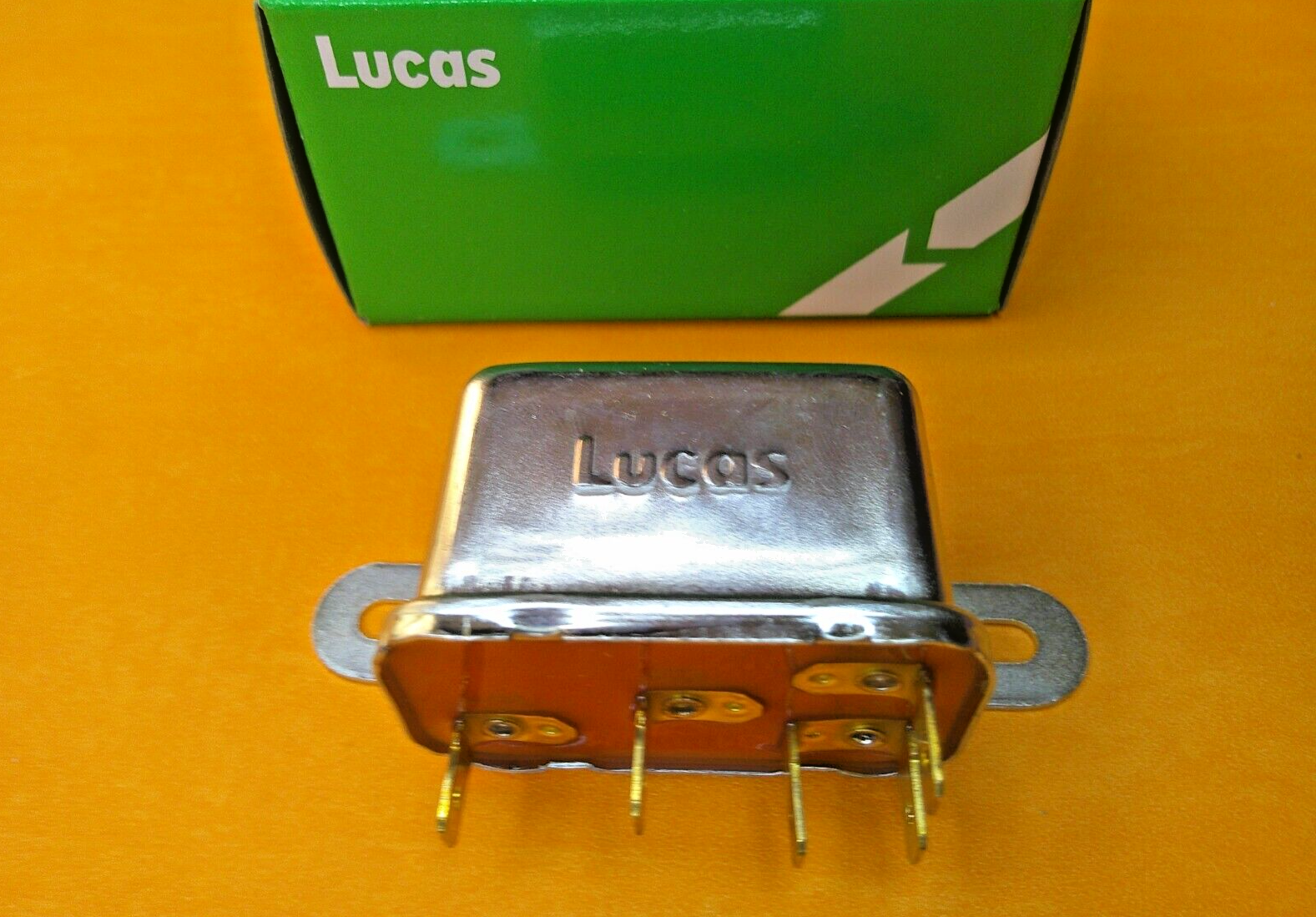

 Lucas 12V 20 Amp 5 Pin 6RA Relay Complete With Box

 to fit

TRIUMPH GT6 VITESSE OVERDRIVE & HORN

THIS IS USED ON MOST TRIUMPHS BUT CHECK YOURS FIRST!!!!

Specifications:

·        Rated at 20A Normally Open

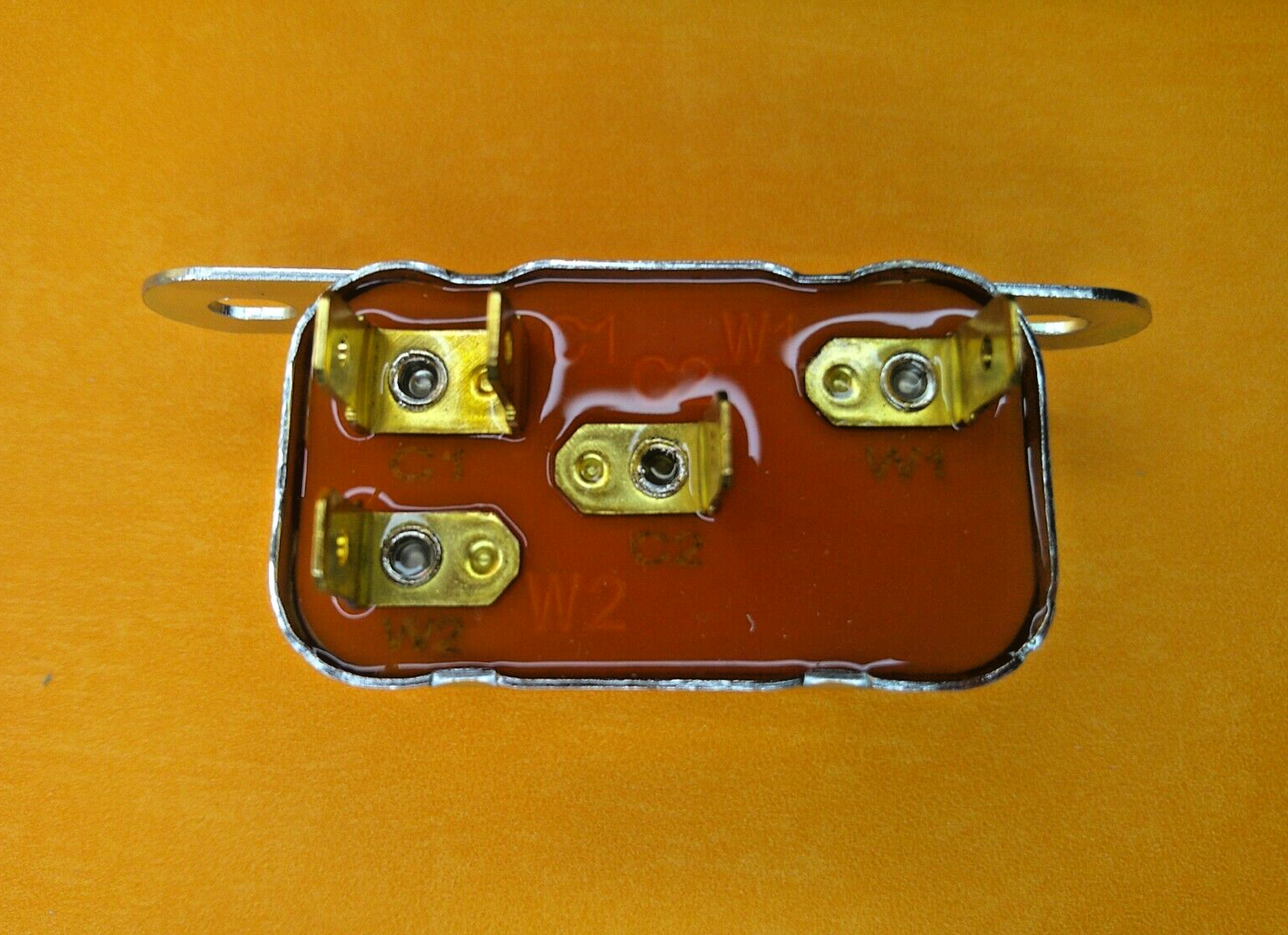

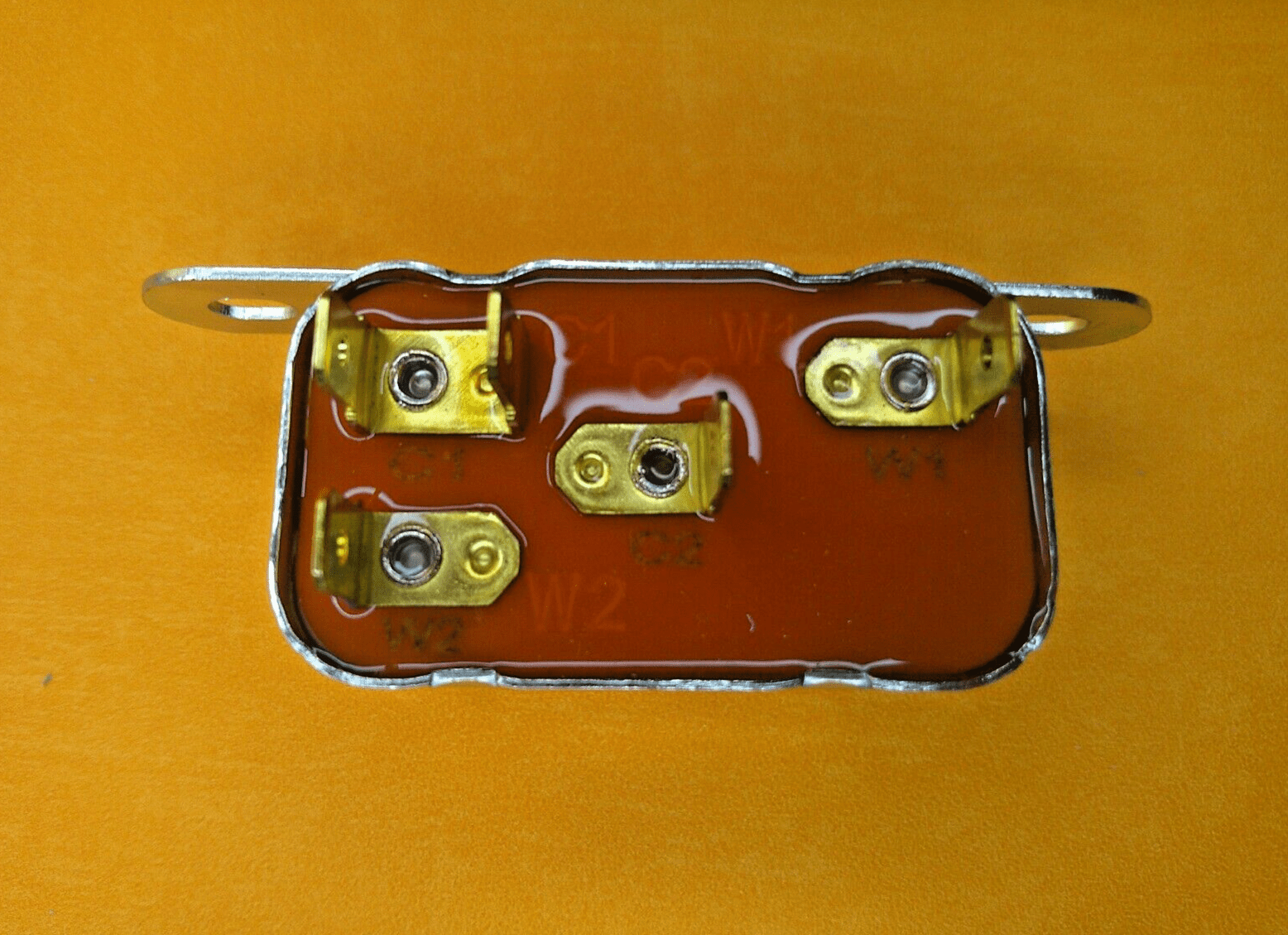

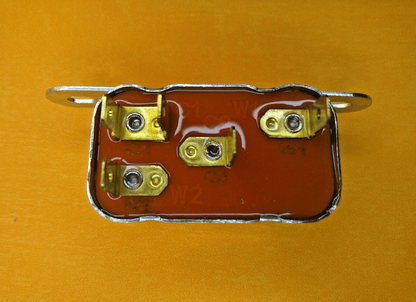

·        5 x Terminals – 2 x C1, 1 x C2, 1 x W1, 1 x W2

This is the Lucas improved version of this relay / solenoid having hermetically epoxy sealed base plate preventing the ingress of moisture which was often the reason for the non-sealed version of this relay to fail in use.

Terminals W1 & W2; Relay coil winding 75 ohms.

Terminals C1 & C2; double and single Lucar terminals with normally open contacts (contacts close when relay coil energized).

This is also a good general purpose relay for headlights, Spot Lights, Horns etc, also very useful for trike's, specials and the kit car enthusiasts / builder.
